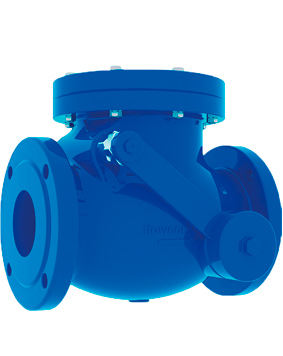

» Horizontal swing pattern with lever & weight
» Bronze trim
SPECIFICATION
Designed to BS EN 16767 formerly BS EN 12334
Horizontal swing pattern with lever & weight
Bolted bonnet
Face to face dimensions to BS EN 558-1
basic series 10 (DN65-DN400)
Flanged to BS EN 1092-2 PN16 formerly BS 4504
ANSI flange drilling available on request
WRAS approved epoxy coating available on request
Can be installed in horizontal or vertical, upward flow piping
Note: Installation orientation shall be confirmed at the time of ordering
