Products & Services
FTFCU Series

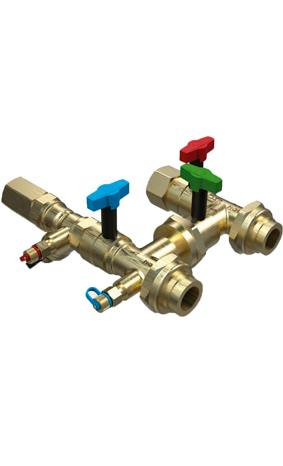

FCU Link For Picv System - FCU Link for PICV System PN20/PN25
- Size Range: DN15-DN32
- Material: DZR Brass
- PN Rating: PN20/PN25
- Connections: Threaded
Description
flowIT by flowconME FCU Link - FTFCU Series - is a pre-assembled compact FCU valve package which saves installation time and labor. Links are factory assembled arrangement of isolation valves, strainer with drain facility, flexible hoses, insulation box, orifice plate and pressure/temperature test points. This pre-assembled FCU links are factory tested and ready to install.
FTFCU Series link coupled with PICV is a perfect choice for your balancing solution.
FEATURES
» Available sizes: DN15 to DN32
» Dezincification resistance body material
» Threaded connections to ISO 7
» Three full-bore isolation ball valves (for supply, return and bypass)
» Extended T-handles to accommodate insulation thickness
» Integral fixed orifice orifice plate gives single KV value which allows easy and accurate flow measurement
» Strainer with drain facility for easy flushing
» Test plugs for checking the flow rate and temperature
» Available with stainless steel flexible hoses of length 150mm to 400mm
» Available with EPP thermal insulation box
